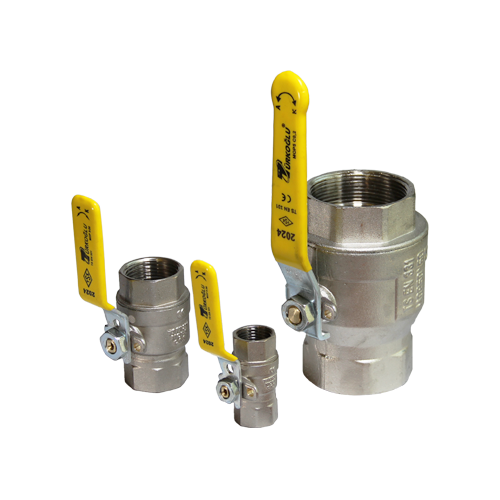

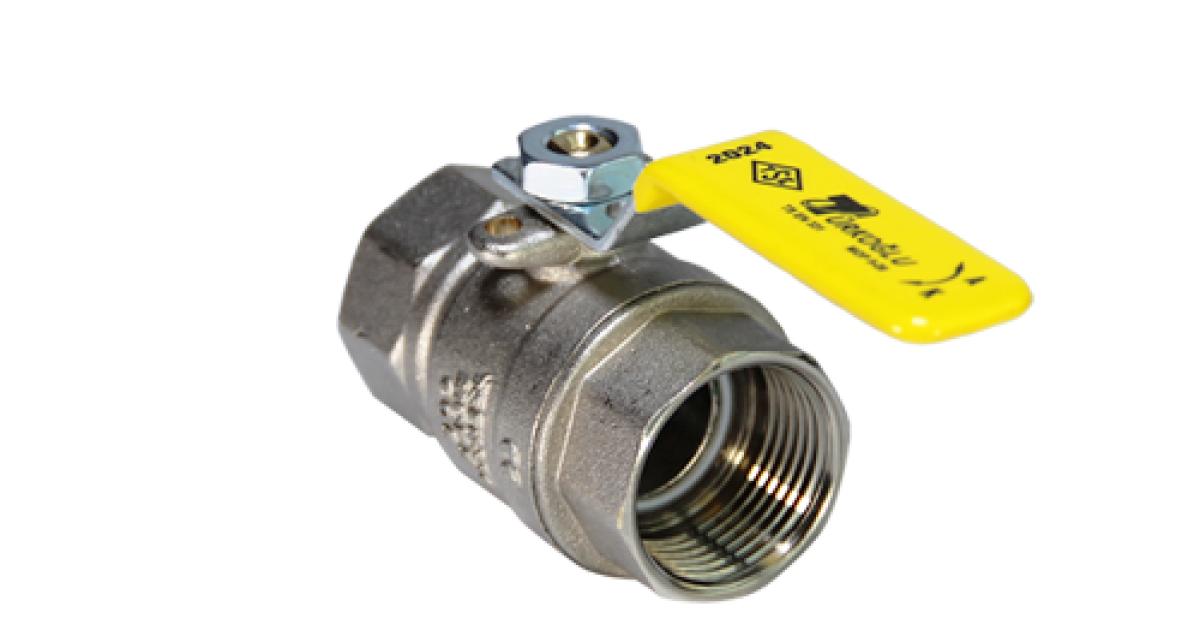

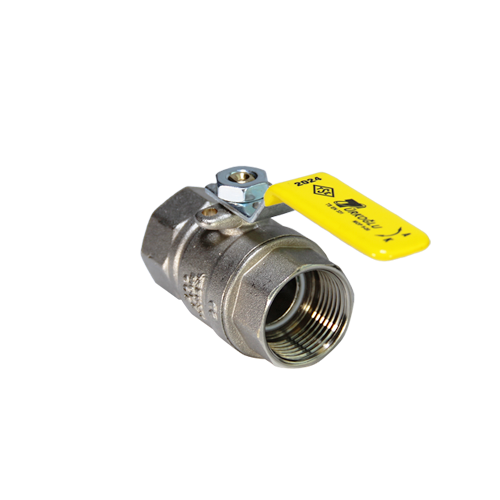

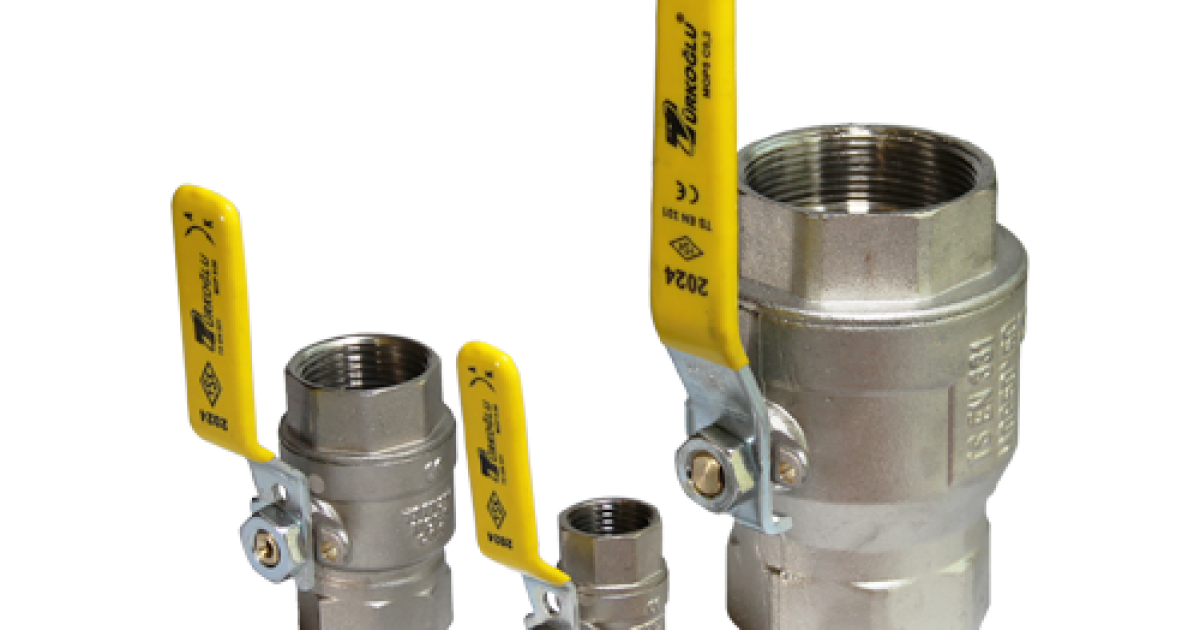

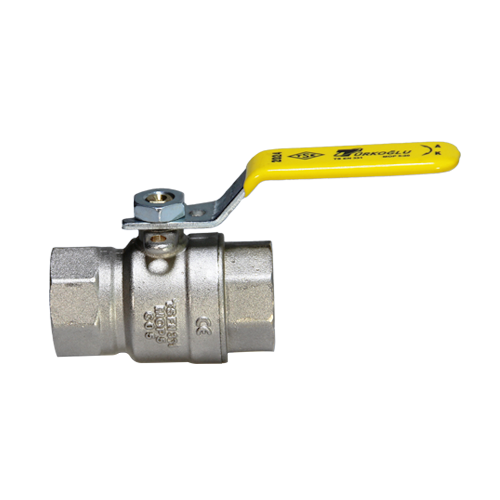

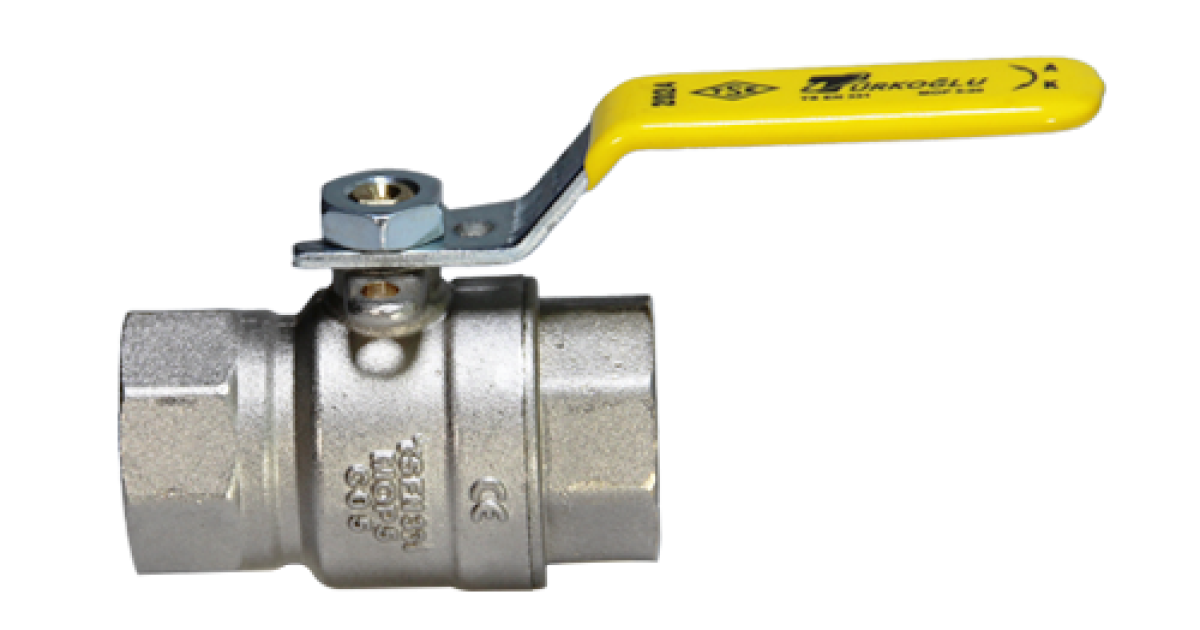

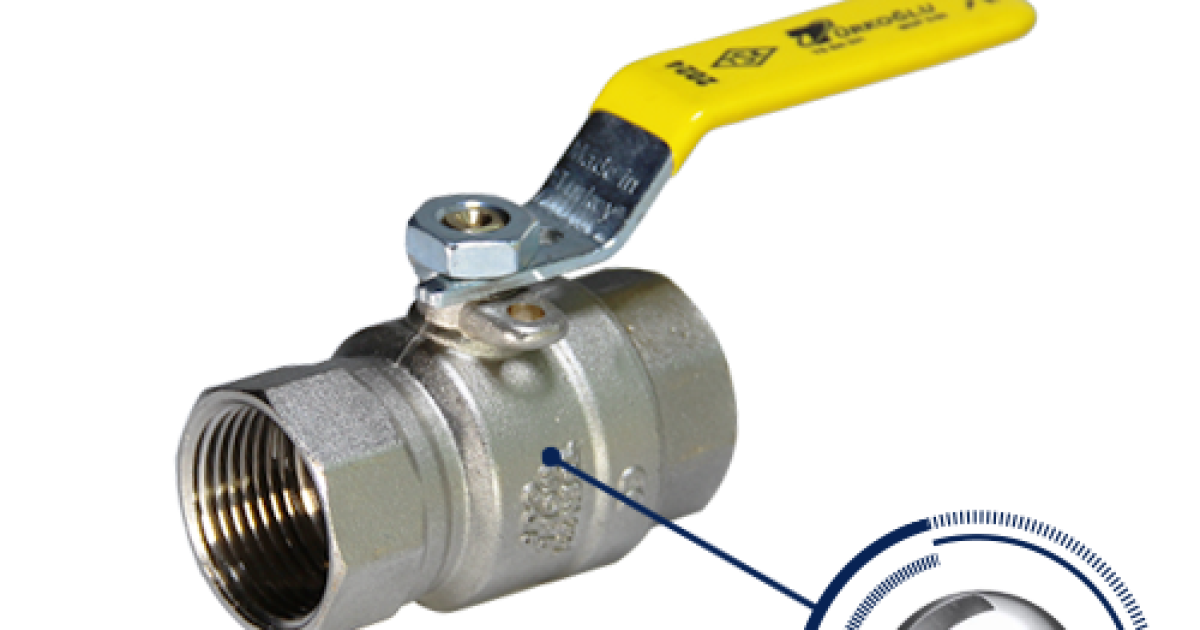

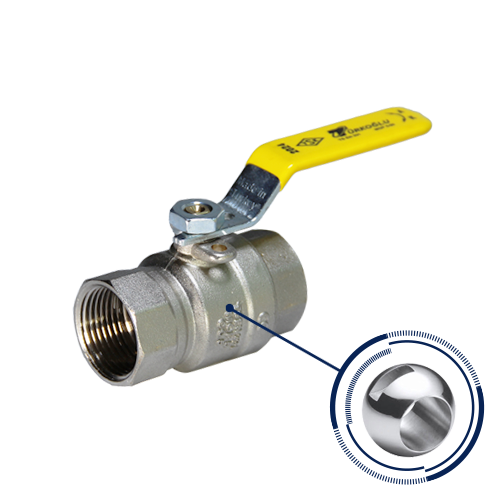

Brass Ball Valve For Gas / Lockable
| Body | Brass | ||
| Connection | Threaded | ||
| Body Type | Two-piece, Lockable Type | ||
| Bore Type | Full Bore | ||
| Working Temp. | -10 ºC….+60 ºC | ||
| Pressure Class | MOP 5 - 20 | ||
| Application Areas | Pressured Gases | ||
| Liquid Fuels | |||
| Natural Gas and LPG |
| Body | CuZn40Pb2- CW617N Ni Plated Brass | ||
| Bonnet | CuZn40Pb2- CW617N Ni Plated Brass | ||
| Ball | CuZn40Pb2- CW617N Ni/Cr Plated Brass | ||
| Stem | CuZn39Pb3- CW614N Brass | ||
| Lever | ST37 Galvanized Steel+ Vinyl Coated | ||
| Locking Pin | Carbon Steel | ||
| Seals | PTFE-Teflon | ||
| O-Ring | EPDM-NBR | ||
| CODE | SIZE | QUANTITY IN BOX | |
| DN (mm) | Inch | ||
| 147 | DN15 | 1/2'' | 100 |
| 148 | DN20 | 3/4'' | 75 |
| 149 | DN25 | 1'' | 50 |
| K0147 | DN15 | 1/2'' | 100 |
| K0148 | DN20 | 3/4'' | 75 |
| K0149 | DN25 | 1'' | 50 |
| 150 | DN15-DN20 | 1/2''- 3/4'' | 75 |
